FMT-W30

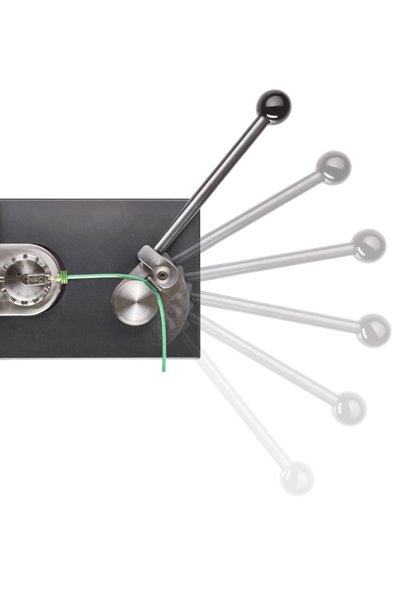

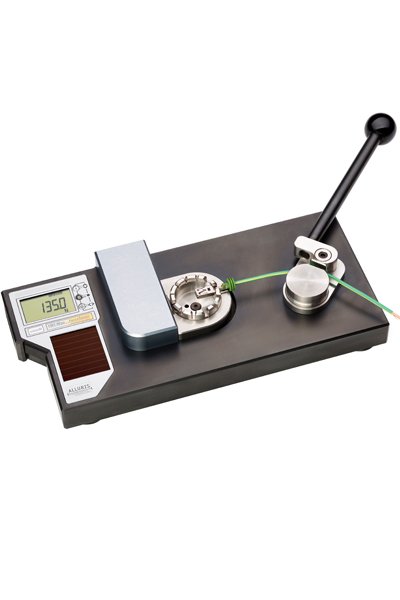

The manual pull-tester is a rugged, hand-lever bench-top tool designed to determine the tensile strength of all solderless (crimped) cable connections. The measuring range of 500 N or 1000 N cover cable cross sections from 0.06 to 6.0 mm² (AWG 30 to 8).

The ergonomic construction with a heavy base plate made of surface-treated, nitrided steel is designed for non-slip use.

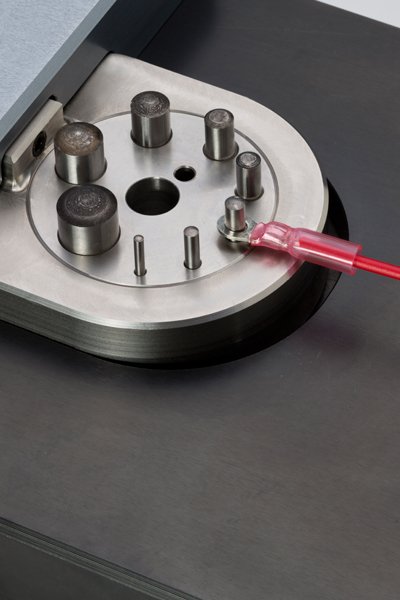

The test specimen holder there is a changeable adapter with 12 different slit widths from 0.5 to 6.0mm, which covers all common cable thicknesses. Other adapters are available as accessories.

Using the USB interface, the test data in MsEcxel can be easily managed and in just a few minutes, a complete test report with statistical evaluation can be created as a PDF file.
